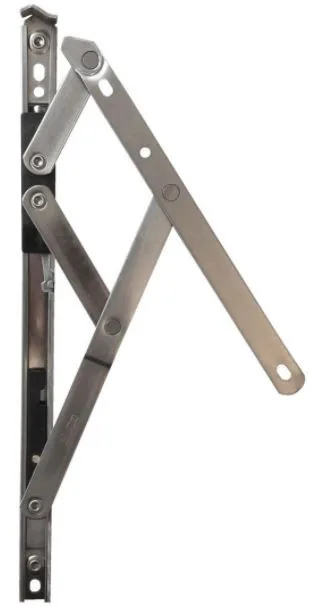

Nico 12" & 16" Side Hung Friction Hinges

The Nico Standard Friction Hinge is manufactured in stainless steel and offers excellent load bearing characteristics. The 13mm stack height hinge is a symmetrical non handed stay Slotted fixing holes in the base channel and sash bar, with a final fixing hole in each component, provide maximum sash/frame adjustment. The all metal end-cap is riveted on to the hinge for extra strength and rivet holes are counterbored in a 3 stage manufacturing process. This means parts are manufactured to tight tolerances and ensures reliable operation of the finished hinges. The friction slide is made from high strength glass reinforced nylon with an adjustable resistance screw to regulate friction.

• 13mm Stack Height
• Side Hung
• 700mm Maximum Vent Width (600mm for 12")
• 1300mm Maximum Vent Height
• 24kg Maximum Vent Weight (22kg for 12")
• 60 Degree Opening Angle
• Made in the UK
• Secured By Design Approved
• BBA Approved
• Successfully tested as a critical component within PAS024 : 2012 (with Hinge Protectors)
• Adjustable Friction
